Correlation and Linear Regression, Scatterplot

X the independent/treatment/explanatory/predictor variable (can be controlled or manipulated); Y the dependent/response variable.
Linear:
   Scatterplot points are straight line-ish. Each unit change of X, the Y changes by a constant on average.
Direction:
   x,y both go up together or both go down together: positive r.
   One goes up, the other goes down: negative r.
Strength: the closer |r| is to 1, the stronger the relationship/association. Observed Y's are close to predicted-by-X's. Residuals are small.
Correlation might mean one variable causes the other but by itself is insufficient to establish causation.

Type or paste the X and Y data. Can be multiple lines for colored groups in scatterplot.

X		Y
Group 1
Group 2
Group 3
Group 4
Group 5



n=    ∑x=    ∑y=    ∑x²=    ∑y²=    ∑xy=
SS_x=∑(x-x̄)²:    SS_y=∑(y-ȳ)²:     SS_xy=∑(x-x̄)(y-ȳ):       ∑z_xz_y=
Centroid: (x̄= ,    ȳ= )    s_x=     s_y=
Covariance=∑(x-x̄)(y-ȳ) / n-1 = (r=Cov/(s_xs_y))    Cov_N

r=
r²= Coefficient of determination. % of variation in y explainable by the regression line (the proportion of the variance in Y attributable to the variance in X). The linear relationship between the variables explains r²% of the variation in the data.
SST (total variation SS_y, ∑(y-ȳ)²) = SSR (explained variation ∑(ŷ-ȳ)²) + SSE (unexplained variation ∑(y-ŷ)²)
    r²= SSR/SST= explained variation / total variation
MSE=   RMSE(standard error of estimate, s_e)=√(SSE/df): (spread of points around regression line)
s_β=    t_.05/2    C.I. slope ± (, )
t=β/s_β=r/√((1-r²)/(n-2)):    df=n-2:          F=

H₀:ρ=0 no correlation, H_A:ρ≠0 yes correlation.    p-value:   If p < α, reject H₀.
r critical value α=.05: α=.01: (or look in table)    Reject H₀ if |r|>|crit.val|

Scatterplot


Linear regression line: ŷ = b₁x + b₀     slope b₁=r(s_y/s_x)=SS_xy/SS_x:    y-intercept b₀=ȳ-b₁x̄=
It goes thru the centroid.     The slope b₁ is the same sign as r.

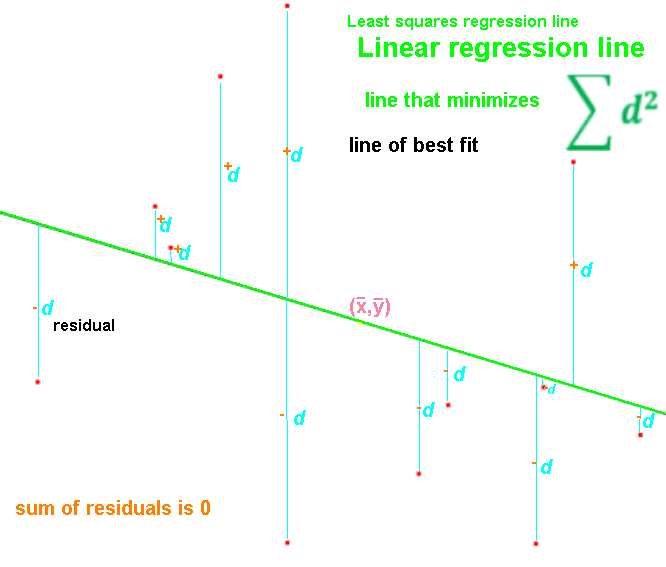

A residual is the vertical difference between a y and the line.
The line minimizes the sum of the squared residuals:     SD of the residuals:
The greater the |r|, the more clustering of the data around the regression line.

X min: X max: Y min: Y max:
Can change the appearance of the line; its "angle".

mean distance from (x̄,ȳ) =    SD of distance=

Covariance matrix Σ:
Eigenvalues: λ₁          λ₂
Eigenvectors:

ŷ is the predicted by regression formula. residual (or prediction error): difference between y and ŷ. x y y^ residual:y-y^

Residual plot: (x,y-ŷ) i.e. (x,residual)   (x,actual y - predicted y)
Regression is good (i.e. relationship between x and y is linear and regression line can be used for prediction) if the residual plot has no pattern and doesn't widen or narrow.

---

Spearman Rank Correlation Coefficient

If populations are not normal.
    d=difference in ranks.
If both data sets have the same ranks, r_s will be +1, if both data sets have opposite ranks, r_s will be -1.

r_s:     Critical value α=0.05:
If |r_s| > C.V., reject H₀. We have a linear relationship!
If |r_s| < C.V., fail to reject H₀. We don't have a linear relationship.

---

Prediction.

x₀:

ŷ:

CL 95% Margin of error E:    CL 95% Prediction interval (PI): (,)

99% Margin of error E:    99% Prediction interval (PI): (,)

Examples      Anscombe's Quartet

r unchanged:  X±c ior Y±c,   aX ior bY (a,b same sign)
r sign flips: aX or bY (a,b different signs)

r≈0: no linear relationship but might be non-linear

r is not "cause-and-effect"
r measures association, not causation
r can be greatly affected by outliers, sensitive to outliers
r unaffected by swapping X and Y
r unaffected by changing measuring units
